General Specifications
Flow Range

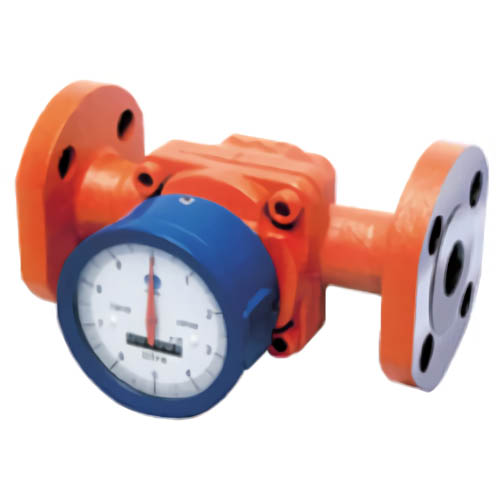

Model : LS5576-2OOA
Nominal Size (mm) : 40
Flange Rating : JIS 10K RF
Flow Range , L/h
Kerosene : 1200 to 11000
(Above 0.8mPa•s to 2mPa•s)
Gas Oil (Heavy oil A) : 600 to 14000
(Above 2mPa•s to 5mPa•s)
Heavy Oil : 400 to 14000
(Above 5mPa•s to 200mPa•s)
Meter Body
Acceptable flulds : Kerosene,Light oil,Heavy Oil (Not serviceable with gasoline)
Operating temp . Range (fluid temp.) : 0 to 120⁰C
Max.operating pressure : 1.18MPa
Linearity : ±0.35% of RD
Material
Body : FC250
Rotors : Special resin
Flow direction : Right → Left (standard),Left → right,bottom → top,top → bottom
Coating color : Orange : Munsell 2.5 YR 6/13
Mechanical Register Specifications
Model : LS5576
Functions : Cumulative counter with dial-and-pointer,6 digits number wheels
Display
One pointer rev : 10 L
Resolution : 0.1L
Counter capacity : 9,999,999.9L
Output Pulse : See next section
Operating Temp Range : -10 to +60⁰C
Construction : Waterproof conforming to IP 65 (weathertight)
Material : Resin/Alumunium die casting
Finish (houshing) : Munsell 4.9 PB4.0/13.9 (Color of molding)
Factored Pulse generator in Mechanical Register (optional)
Item : MR sensor
Type of output pulse : Voltage pulse/open collector
Number of pulses (per pointer rev.) : 10 P
Pulse Width : 1 ms min
Duty factor : ─
Output Signal Levels : Voltage pulse ON:6.5V min OFF : 1 V max
Open Collector ON:1V max
Max.Operatiing Current : 30mA
Max.Operating Voltage : 40V DC (OPEN COLLECTOR)
Contact Bounce : ─
Life : ─
Signal Cable : Vinyl-insulated,4-conductor,shielded (core wire 0.5mm²,4 to 10mm in O.D)
Transmission Distance : 1 Kilometer max.(using a CVVS cable 1.25 to 2.0mm²)
Power : 12 to 24VDC ±10%
Current Drain : 20mA max
Item : Reed switch
Type of output pulse : Contact-closure pulse
Number of pulses (per pointer rev.) : 1 P
Pulse Width : ─
Duty factor : 40/60 to 60/40
Output Signal Levels : ─
Max.Operatiing Current : 60mA (200Ω protective resistor provided)
Max.Operating Voltage : 125V AC,50V DC
Contact Bounce : 0.5ms max
Life : 5 x 10⁷ cycles off operating (with resistive load at 12V DC,10mA)
Signal Cable : Vinyl-insulated,4-conductor,shielded (core wire 0.5mm²,4 to 10mm in O.D)
Transmission Distance : 1 Kilometer max.(using a CVVS cable 1.25 to 2.0mm²)
Power : ─
Current Drain : ─
Mechanical Register Pulse Output
Model : LS5576-2OOA
Nominal Size (mm) : 40
MR Sensor
Pulse Units : 1 L/P
Pulse Units at Max Flow Rate : 3.8 Hz
Reed Switch
Output Freq : 10 L/P
Pulse Units Output Freq : 0.38 Hz
at max Flow Rate
Max Flow Rate (L/h) : 14000
